Calculator Description
Co-ordinates v1
The coordinates calculator converts scalar to polar and angular to distance co-ordinates

Co-Ordinates
(Vector or Grid)

Subject

Vectors

Cartesian and Polar co-ordinates are two different methods used to describe the magnitude and direction of a vector.

Cartesian co-ordinates are the two or three-dimensional linear distances (x,y,z) from a known point or origin to the end of a vector.

Polar co-ordinates are the angular orientations (α & β) of a vector along with its length (V) defined from a known point or origin.

Map Co-Ordinates

Latitude-Longitude angles and UTM distances are used to define a point on a curved or (flattened) surface.

Latitude and Longitude are the vertical and horizontal angles (respectively) that define a point on the surface of a sphere (such as a planet) with respect to a fixed vertical meridian (Longitude) and a fixed horizontal meridian (Latitude). These meridians can also be used as datums from which to define surface distances to the same point.

Calculator

Coordinates converts between Cartesian and Polar vector co-ordinates and also between spherical latitude-longitude angles and UTM distances.

The co-ordinates calculator includes four calculation options; Cartesian to Polar (Vectors) & Polar to Cartesian (Vectors), Angle to Distance (Lat-Long) and Distance to Angle (Lat-Long).

For help using this calculator see Technical Help

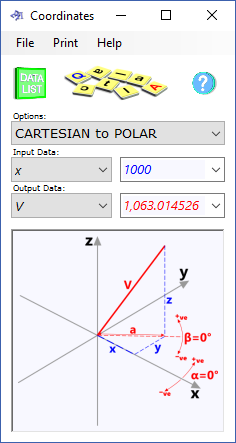

Co-Ordinate Calculator - Options

'Cartesian to Polar' calculation option, which applies vector co-ordinates.

You enter: and co-ordinate calculator will provide:
  • Distance x
  • Distance y
  • Distance z
  • Vector (length)
  • Horizontal angle
  • Vertical angle

'Polar to Cartesian' calculation option, which applies to vector co-ordinates.

You enter: and co-ordinate calculator will provide:
  • Vector (length)
  • Horizontal angle
  • Vertical angle
  • Distance x
  • Distance y
  • Distance z

'Angle to Distance' calculation option, which applies to map or grid co-ordinates.

You enter: and co-ordinate calculator will provide:
  • Radius
  • Latitude angle
  • Longitude angle
  • N/S distance
  • E/W distance

'Distance to Angle' calculation option, which applies to map or grid co-ordinates.

You enter: and co-ordinate calculator will provide:
  • Radius
  • N/S distance
  • E/W distance
  • Latitude angle
  • Longitude angle

Check minimum system requirements



Price: 10.00
