Calculator Description
Table of Elements v1

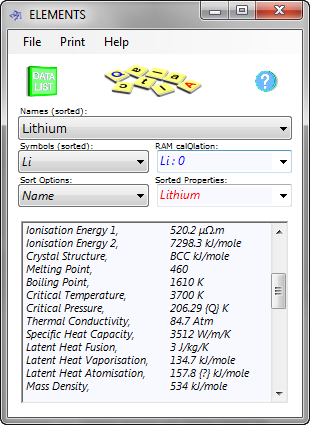

The periodic table of elements database provides atomic elements properties and an active periodic table allowing you to sort all the elements according to any properties you select

Table of Atomic Elements

The periodic table of elements includes a comprehensive database of the most useful properties of nature's atomic elements that can be displayed as an active periodic table, a complete list of properties for a selected atomic element or a sorted list of elements according to a selected property.

CalQlata's periodic table of elements also includes a facility to calculate the RAM of multiple atoms or molecules in grams/mole.

For help using this database see Technical Help

Sort Options

The periodic table of elements' database includes the following properties:

Name, Symbol, Atomic number, Group, RAM, Atomic Radii, Oxidisation No's, Ionic Radii, Electron Affinity, Electrical Resistivity, Electronegativity, Ionisation Energies, Crystal Structure, Melting Point, Boiling Point, Thermal Conductivity, Specific Heat Capacity, Latent Heat of Fusion, Latent Heat of Vaporisation, Latent Heat of Atomisation, Density, SMYS, UTS, Young's Modulus, Shear Modulus, Bulk Modulus, Poisson's Ratio, Elongation @ Break, Electron Shells

If you select a property from the ‘Sort Options’ drop box, that property for every atom will be listed in descending order in the ‘Sorted Properties’ drop box. The name and the symbols of the atoms will be sorted in the same order along with the list in ‘RAM calQlation:’.

All the properties for the atom selected via ‘Names (sorted):’ and ‘Symbols (sorted):’ will appear in the main window.

If you ‘click’ on the CalQlata logo, an active periodic table will appear showing all the properties listed under ‘Sorted Properties:’.

You enter values (number off) in ‘RAM calQlation:’ for any combination of elements and the RAM result for the atom or molecule will appear in the main window in units of g/mole.

Note: Due to the lack of reliable data available, the following elements have been omitted from this program:

  • Nobelium (No, 102)
  • Lawrencium (Lr, 103)
  • Rutherfordium (Rf, 104)
  • Dubnium (Db, 105)
  • Seaborgium (Sg, 106)
  • Bohrium (Bh, 107)
  • Hassium (Hs, 108)
  • Meitnerium (Mt, 109)
  • Darmstadtium (Ds, 110)
  • Roentgenium (Rg, 111)

Check minimum system requirements



Price: 10.00
